The Rawrr Mantis is for off-road use only and is not legal on public roads.

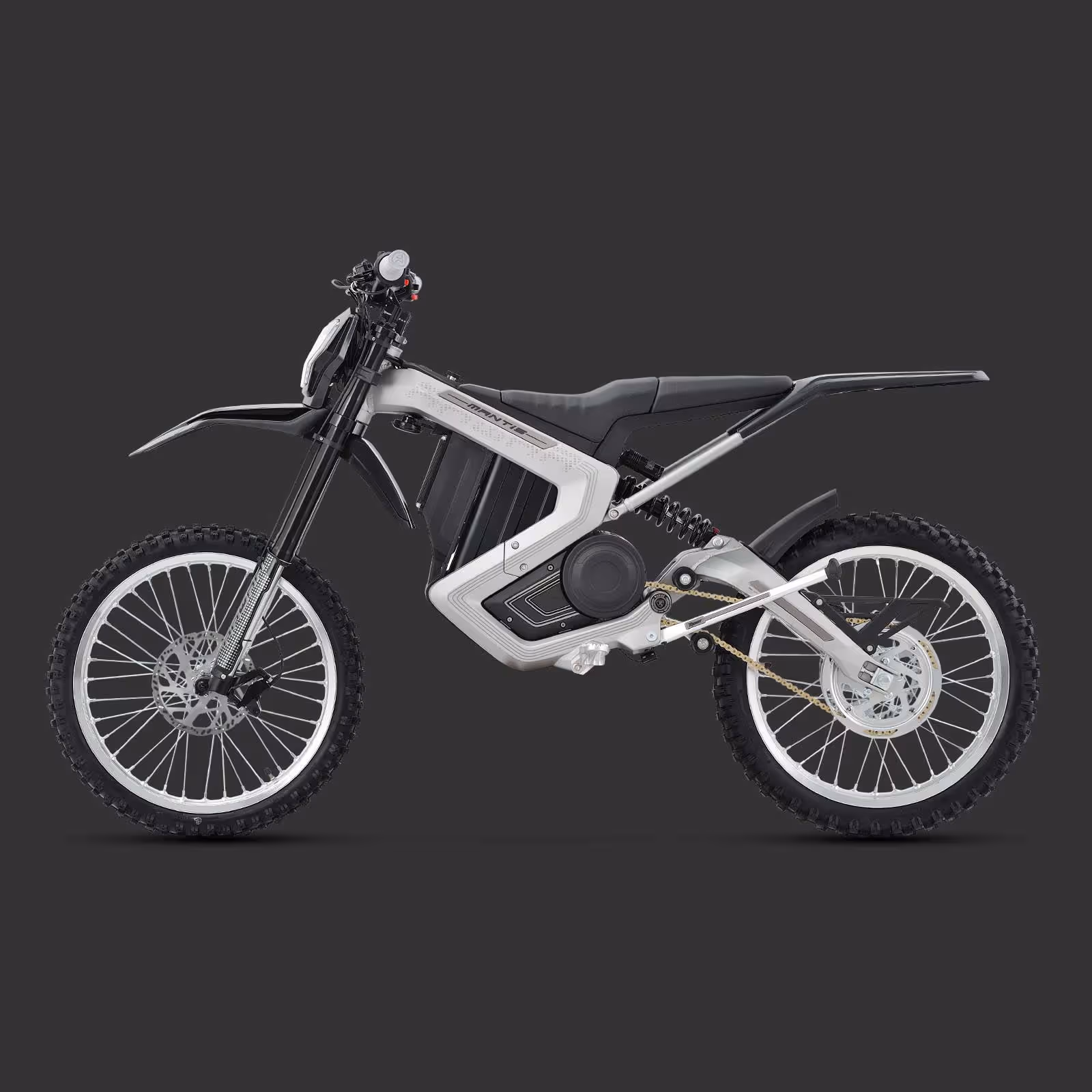

The Rawrr Mantis electric all-terrain bike is the ultimate choice for adventurers and thrill-seekers who want to conquer any terrain easily. With its high-performance features and advanced technology, this bike is designed to take places you never thought possible.

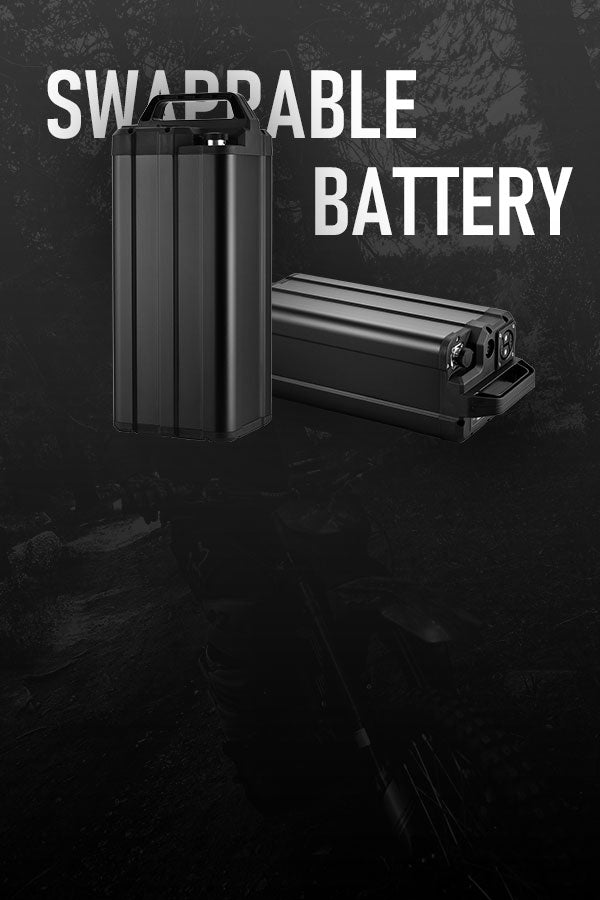

Mantis carries a powerful 60V swappable Samsung battery, which provides up to 75 miles of range (depending on eco or sport mode) on a single charge. The 7500W max motor power and 45N.M max torque ensure that you can climb hills, navigate rough terrain, and reach top speeds of up to 45MPH.
The Rawrr Mantis features a forged aluminum frame, which is both lightweight and durable, and can accommodate a high max payload. The motorcycle-inspired design is sleek and modern, and the hydraulic disc brakes provide reliable stopping power in any condition.
Order yours today and experience the thrill of the ride like never before!
Want your Mantis to arrive fully assembled? add ASSEMBLY SERVICE to your cart.
Kindly be aware that all motorcycles sold by Rawrr or its authorized dealers are intended exclusively for off-road purposes. It is important to acknowledge that these vehicles may not adhere to specific national, federal, provincial, and/or local laws or regulations. As the buyer, it is your responsibility to thoroughly acquaint yourself with any potential restrictions that may apply to the usage of such a product in your specific location. You assume complete liability for the choices you make regarding its utilization and any potential ramifications that may arise as a result.
DETAILED SPECS
| Length: |
1935mm |
| Height: |
1200mm |
| Width: |
795mm |
| Ground Clearance: |
310mm |
| Wheelbase: |
1290mm |
| Seat Height: |
850mm |
| Vehicle Weight/W Battery: |
130ibs/160ibs |
| Front Fork Stroke: |
200mm |
| Rear Shock Absorber Stroke: |
75mm |
| Tire Size(Front): |
70/100 |
| Tire Size(Rear): |
80/100 |
| Brake Type: |
Hydraulic Disc Brake |
| Controller Type: |
Mantis FOC Controller |
| Max Payload: |
265 ibs |
| Front/Back Disc Brake: |
203mm |
| Top Speed: |
45MPH |
| Max Torque for driving wheel: |
459NM |
| Energy Recovery: |
EABS Brake |
| Battery Type: |
Lithium |
| Battery Brand: |
Samsung |
| Battery Cap: |
60V 35Ah |
| Range: |
75Mile (Eco mode 15mph) |
| Charging Time: |
3-6 hours |
| Charger Input Voltage: |
AC90/264V |
| Over-current Protection Value: |
120A |
| Motor Type: |
PMSM |
| Regular Motor Power: |
5000W |
| Max Motor Power: |
7500W |
| Regular Torque: |
10 N.M |
| Max Torque: |
45 N.M |
| Motor Rotation Speed: |
5100RPM |
| Motor Efficiency: |
94% |
| Max Motor Rotation Speed: |
6000RPM |
| IP Rating: |
IPX7 |
| Climbing Ability: |
50°+ |
| Cooling Method: |
Air-Cooled |
| Insulation Class: |
H/180℃ |
